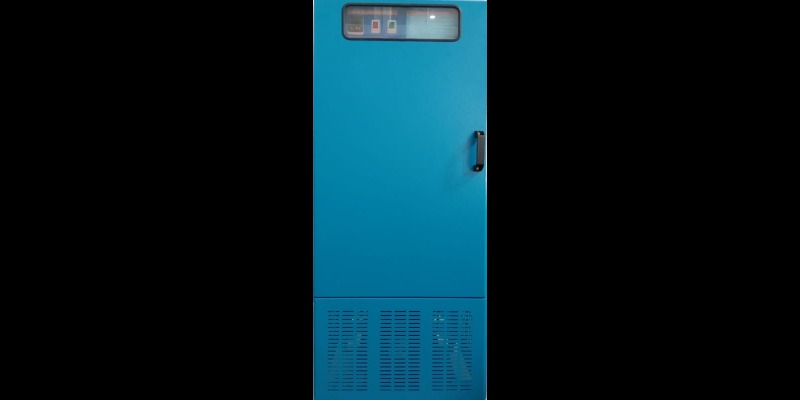

Owing to a long-term destination for our business, we are engaged in offering BOD Incubator. This BOD incubator is commended in the market for its high quality & easy usage. The offered BOD incubator is manufactured by utilizing high grade raw material & contemporary techniques in fulfillment with the set standards.
We can make customize modifications
TECHNICAL SPECIFICATION
| Chamber Design | Double walled |
| Inner Chamber | Inner chamber made of stainless steel 304 Grade OR stainless steel 316 Grade |
| Outer Chamber | Outer chamber made of mild steel and finished with powder coated. OR stainless steel 304 Grade |
| Insulationa | Insulation between inner and outer chamber is filled with high grade glass wool with a gap of 65mm thickness, to withstand maximum Temperature 60° C |
| Wheels | The unit is mounted on a sturdy steel frame with cast iron wheels for easy movements. ( For higher capacity only). |
| Conditioning system Air Circulation Fan Motor | The triple walled back of the instrument is provided with air circulation fans. The chamber is equipped with a vertical recalculating conditioning stream of air sucking from the top of the inner chamber and allows passing through the back side of the inner chamber duct and carrying heating/cooling/humidity which enters from the bottom of the chamber this process continuous to maintain uniformity throughout the chamber. |
| Cooling | An energy efficient cooling unit is installed in our instrument hermetically sealed compressors. These compressors are the heavy-duty industrial type noise free; vibration free and air-cooled Compressors start in sequence to protect the unit from overloading. We use CFC free environmentally friendly refrigerant and compressors of Kirloskar/Tecumseh make, conforming to latest international standards and guidelines |
| Inner Glass Door | Inner full- length glass door is provided to view the samples without disturbing the temperature |
| Outer Door | Inner stainless steel and Outer made of Mild steel finished with powder coated OR stainless steel 304 Grade |
| Gasket | Rubber gasket and latch is provided for the door is provided for the door to avoid air leakage and temperature loss from Instrument. |
| Trays | Two/Three perforated removable stainless-steel trays at the fixed distance. |
| Temperature Range | 10°C to 60°C |
| Temperature Controller | Microprocessor based PID temperature controller with dual display (Process value and set value), low and high limit setting with PT-100 Sensor and Timer control (optional). |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ± 2°C. |
| Temperature Uniformity | ± 3°C. |
| Power Supply | 230 Volts Single Phase 50Hz, AC supply. |
| Inner Viewing Light | Door Switch with viewing light will be provided to view the samples inside the Chamber [optional] at an extra cost. |
